3DSL Rhino Ruggedized NDT Camera

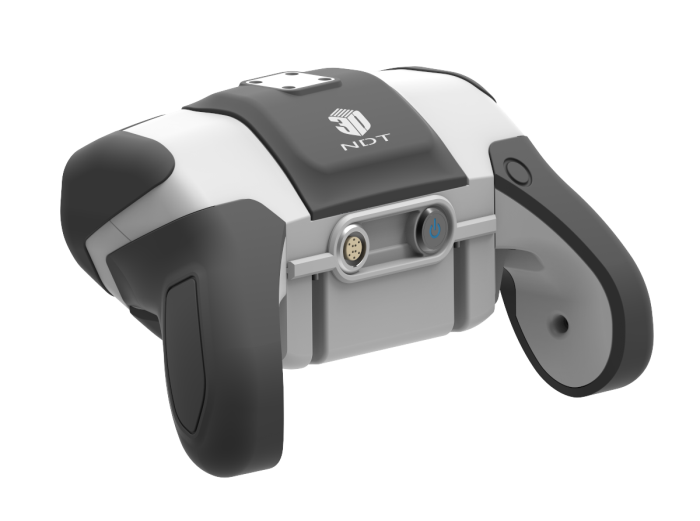

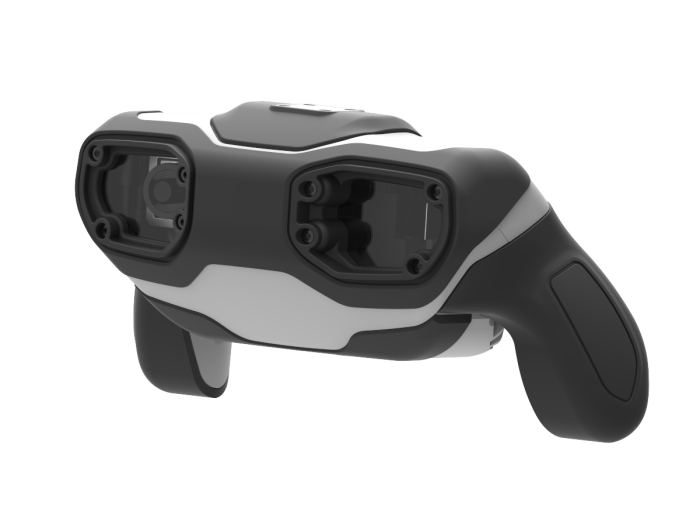

Welcome the Rhino from Seikowave: the next generation in field ruggedized 3D imaging. Like the pachyderm for which it’s named, the 3DSL Rhino is ready for field work. With an ingress protection level of 67 (IP67) and shock protection, this rugged Rhino can be dropped in water, dropped in mud, taken out in the Canadian winter or the Arabian summer and continue taking high quality 3D images.
3DSL NDT软件套件包含在3DSL犀牛中，可以完全评估基础设施损坏，并产生符合行业标准建议的损害报告。
Request a Quote
我们为自己提供快速交付而自豪。然而，库存迅速变化，有时一些物品可能没有库存。如果您需要加急装运，请通过电子邮件联系我们或致电我们的办公室确认物品的可用性。*标称交货时间因产品而异。
保持您的基础架构安全。3dsl犀牛在脑海中被开发。除了成像硬件和分析软件之外，还可以使用现场配件，以方便所有损坏评估工作，并每次确保正确的测量。行业领先的准确性，精度和分辨率最高的质量测量。
Product Benefits
The rugged Rhino
- Can operate in windy deserts
- In rain and snow
- 可以掉下来
- Integrates with 3DSL robots
- 生成标准3D数据集，可以导出到各种软件包
- Maintains +/- 2 mils (0.050 mm) accuracy
3D images can be analyzed using the 3DSL NDT software suite, included with each Rhino, to determine the maximum safe operating pressure and burst pressure using RSTRENG, ASME B31G and modified AMSE B31G. Dent analysis is compliant with ASME B31.8 and B31.4. The option API 579 modules produce API compliant reports for a variety of chemical and petro-chemical plant infrastructure.
Applications
- Midstream transmission pipeline damage assessment
- ASME B31G，改装ASME B31G，RSTRENG
- ASME B31.8，ASME B31.4
- 导出有限元分析（FEA）
- Chemical and Petro-chemical plant inspection
- API 579 compliant
- Aircraft inspection
- SRM compliant analysis
- 桥梁检查
- Metal loss on bolts and gusset plates
- Strain and deformation of gusset plates
- 焊接检查
技术规格
| Specification Type | Specification | |
| 数据接口 | IEEE 802.3 1000baseT | |
| Sensor resolution | 659 x 493 | |
| Sensor | Sony ICX424 | |
| Sensor type | CCD Progressive | |
| 传感器尺寸 | 类型1/3 | |
| 细胞大小 | 7.4 µm | |
| 3D acquisition rate | < 90ms | |
| Max frame rate at full resolution | 120 FPS. | |
| A/D | 14位 | |
| On-board FIFO | 16 MB. | |
| 3D测量 | ||
| 系统 | 420 | 200 |
| Working distance | 360mm (minimum) | 180mm (minimum) |
| 14” (minimum) | 7“（最低） | |
| Measurement volume | 200mm X 150mm X 300mm | 100mm x 75mm x 200mm |
| 8“x 6”x 12“ | 4“x 3”x 8“ | |
| 分辨率（侧面） | 0.4mm / 16mils. | 0.2mm / 8mils |
| 分辨率（深度） | 0.05mm / 2mills | 0.05mm / 2mils |
| Operating conditions/Dimensions | ||
| 工作温度 | -10°C … +40°C | |
| 14°F … +104°F | ||
| 电源要求（DC） | 12 VDC，包括AC / DC适配器;系统也可以使用电池供电 | |
| Power consumption (12 V) | 10 W. | |
| 大量的 | 2.4 kg / 5.3lbs | |
| Dimensions | 220mm X 120mm X 80mm | |
| (L x W x H in mm) | 8.7” X 4.7” X 3.2” | |
| Regulations | RoHS, Class A, IP67, meets one meter (3.3 feet) drop test requirements onto concrete | |
