Phoenix跟踪器便携式C扫描映射系统
示踪剂是一个多功能的手法扫描系统，可以计算和输出用于C扫描检查的精确X-Y位置数据，而无需扫描帧的约束。非常适合使用线性阵列探头操作，示踪剂是一种快速，简单且灵活的便携式C扫描检查套件。
请求报价
我们为自己提供快速交付而自豪。然而，库存迅速变化，有时一些物品可能没有库存。如果您需要加急装运，请通过电子邮件联系我们或致电我们的办公室确认物品的可用性。*标称交货时间因产品而异。
示踪剂是一个多功能的手法扫描系统，可以计算和输出用于C扫描检查的精确X-Y位置数据，而无需扫描帧的约束。Tracer is ideally suited to operate with linear array probes to provide a fast, simple and flexible portable C-scan inspection kit.
示踪剂的典型应用包括：
- Corrosion mapping
- 复合材料中的分层或缺陷检测
- 债券检查
- 用涡流阵列裂纹检测
- In-service C-scans

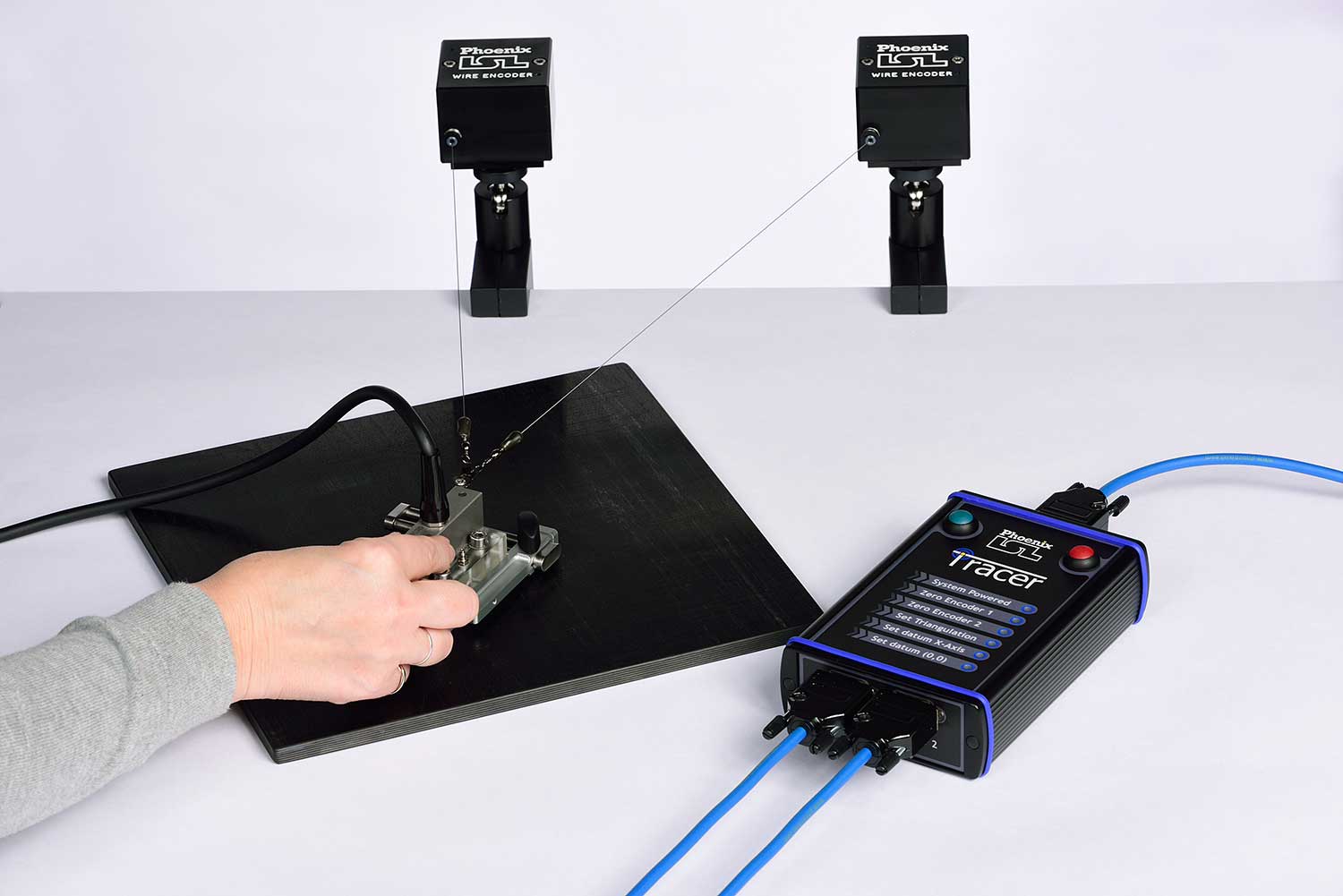

Tracer comprises two wire encoders both linked to the probe being scanned. The output from the encoders passes to an interface unit which then calculates and provides the X-Y encoder values for your instrumentation.
The encoders can be mounted anywhere close to the inspection site permitting set up on or near to the component, or around obstructions. They come with three snap fit mounting options for different surfaces: vacuum cup, magnet and clamp. The mounts can be used to fix the encoders upright, on their side or even inverted. The wire encoders are then attached to a c-clamp which is able to grip any probe or wedge up to 55mm wide.

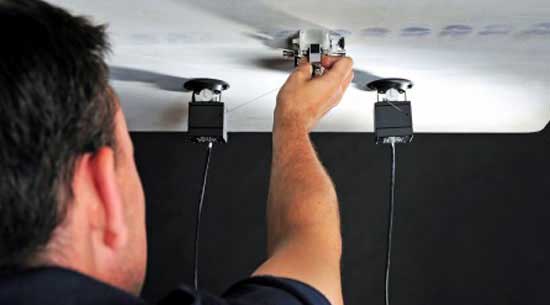

示踪剂可以在从单个位置使用高达2m x 2米的检查区域。还可以以任何相对于编码器的位置以任何角度设置检查区域。这使得难以访问区域的C扫描检查。当探头从表面抬起然后更换时，示踪器不会失去位置，因此，最大扫描覆盖率达到障碍物。
Tracer can be connected to any instrument capable of recording two axes of encoder information. It is powered through the encoder 5V supply and requires no other power source.
好处：
- 多功能：徒手扫描提供X-Y位置信息，而无需扫描框架的约束
- Fast: quick to set up and calibrate in 5 simple steps
- Portable: The easy to handle, lightweight system consists of just two wire encoder units with mounts, a probe holding c-clamp, and an in-line interface box
- 兼容：可以与具有X-Y编码器输入的任何仪器一起使用
- 用于C扫描检查的低成本解决方案
规格：
- 检查解决方案：5步/ mm
- Inspection area: 2m x 2m
- 检查速度：任何方向高达500mm / s
- 探头宽度：高达55mm
- Mounting separation: 0.2m to 2m
- Inspection Orientation: Any, user defined during calibration
- 安装选项：磁性（4“OD在铁素体材料上为平坦）真空杯（4”OD在光滑的表面夹具上（在平行表面上最高40mm）
- Mounting orientation: Any – inverted, horizontal, vertical
- Termination: Any manufacturer’s compatible instrumentation
Standard Kit:
- 2 x线编码器
- 2 x磁性，真空和夹具编码器安装座
- 1 x探头保持c-clamp
- 1 x示踪界面盒
- 1x 2.5m X-Y encoder cable
- 1 x保护盒
配件：
- 线性相位阵列探头和楔形
- 耦合泵系统
- Phased array calibration block
- 手动和自动双晶探头
