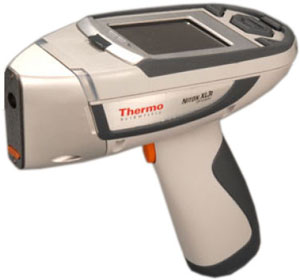

Niton™ XL3t Ultra Analyzer
Find elusive oil and gas deposits and avoid drilling in the wrong spot, which is expensive and time consuming. The Thermo Scientific™ Niton™ XL3t Ultra Analyzer provides rapid sample analysis in the field so that you can quickly find where deposits are and which ones will prove the most productive. This high-functioning tool offers the superior light element detection required for gas shale applications without helium purge or vacuum. It is also the instrument of choice for positive material identification, delivering exceptional elemental analysis and alloy grade identification in seconds.
Request a Quote
我们为提供快速交付而感到自豪。但是，库存迅速变化，有时某些项目可能没有库存。如果您需要加急货物，请通过电子邮件与我们联系，或致电我们的办公室确认物品的可用性。*标称交货时间因产品而异。
Niton XL3T Ultra Analyzer非常适合需要更快的分析和较低检测限制的特定应用。超优势是45mm2硅漂移检测器（SDD）可提供敏感性和测量时间的大幅度改善 - 比传统的Si-Pin探测器快10倍，并且比常规的硅漂移探测器要精确3倍。凭借其更快的分析，更高的精度以及无需氦或真空辅助的光元素的能力，它是以下应用的理想工具：
油气勘探
- 上游探索和生产
- Rapid, on-site chemical analysis of rocks, cuttings, and cores that can be used for identifying formations and determining mineral composition of the rock
- 从实时收集的数据中推断出有利于石油和天然气生产的矿物学特性
Mining Exploration
- Early stage exploration: soil survey and outcrop evaluation
- Advanced exploration and drilling: trend analysis to identify decreasing or increasing pattern of elements of interest to make “continue” or “stop” drilling decisions onsite
- 矿石存款建模/映射
阳性材料识别（PMI）
- Fast, accurate alloy analysis and positive alloy grade identification
- Incoming materials inspection, in-process verification, and final product inspection
- 恢复失去的材料可追溯性
- Isolate finished welds to validate filler material and dilution
- Confirm the integrity of process process piping, valves and reaction vessels
Specifications
| Analytical Range | Standard Analytical Range: Up to 30 elements from Mg to U (varies by application)Optional Light Elements; Ultra-low light element detection via He purge |
|---|---|
| Available Analytical Modes | 模式（随着应用而变化）合金模式：金属合金，电子合金，珍贵金属bulk模式：土壤，采矿，TestAll™塑料模式：ROHS塑料，玩具和消费品塑料，testall，Testall，Painted Producted Products Custom Modes：根据要求（基于要求的应用程序可行性）下载beplay体育app图标黑色） |
| Data Storage | 内部> 10,000读物的读数 |
| 数据传输 | USB, Bluetooth, and RS-232 serial communication |
| 描述 | Niton XL3T Ultra分析仪 |
| Detector Type | Geometrically Optimized Large Area Drift Detector |
| 显示类型 | 倾斜，颜色，触摸屏显示 |
| Item Description | Niton XL3T Ultra分析仪 |
| 身高（英语） | 3.75 in. |
| Height (Metric) | 95.5 mm |
| 长度（英语） | 9.60 in. |
| Length (Metric) | 244 mm |
| Width (English) | 9.05 in. |
| Width (Metric) | 230 mm |
| 可选配件 | WeldSpot 3 mm small-spot collimation, portable test stands, stationary (bench-top) test stand, mobile test stand, Thermo Scientific™ Extend-a-Pole™ extension pole, weld mask, Thermo Scientific™ HotFoot™ hot surface adapter, soil testing guard |
| 安全功能 | 受密码保护的用户安全性 |
| 标准配件 | 用于定位和存储图像的集成CCD摄像头，锁定携带箱，屏蔽皮带皮套，两个锂离子电池组，110/220 VAC电池充电器/AC适配器，PC连接电缆（USB和RS-232）Thermo Scientific™Niton数据传输（NDT™）PC软件，安全挂绳，检查样品/标准 |
| System Details | Resolution: < 185 eV @ 60,000 cps @ 4µ sec shaping time |
| Tube Type | Ag anode (6-50 kV, 0-200 µA max) |
| 重量（英语） | 3 lbs. |
| 重量（度量） | 1.3公斤 |
| System Electronics | 533 MHz ARM 11 CPU300 MHz dedicated DSP80 MHz ASICS DSP for signal processing4096 channel MCA32 MB internal system memory/128 MB internal user storage |
| Data Entry | 触摸屏键盘编程可编程的选择列表Soptional Wireless Remote Barcode读取器 |
| 许可 | Varies by region. Contact your local distributor. |
| 尺寸（l x w x h） | 9.60 x 9.05 x 3.75 in. (244 x 230 x 95.5 mm) |
| Certifications/Compliance | CE, RoHS |
